Enable BitLocker Using SCCM OSD Task Sequence and MBAM

Few days ago I wanted to enable BitLocker as a part of OS deployment. With SCCM & MBAM this can be done in two ways.

1. Used Space Encryption or Pre-Provisioning BitLocker.
2. Full Disk Encryption (FDE) or the normal way.

Pre-Provisioning BitLocker is crazily fast. Because it encrypts the disk even before the OS is applied. Also it will only encrypt the used space. So when data gets written to disk it will automatically encrypt the newly added data. Used Space Encryption is good if the HDD has never stored confidential data in the past or the HDD is previously fully encrypted with BitLocker. I prefer this method.

FDE as the name suggests, encrypts the entire disk. Also it's a time consuming process even if configured as a part of OS deployment. It might take 2-3 hours or more depending on the size of the HDD and the size of the data on the HDD. But most people prefer this method.

I will share my experience & task sequences which worked for me to do above in both ways.


SCCM Task Sequence can pre-provision BitLocker if the OS is Windows 7 or above and the device has a TPM. So what's the big deal here? ...Actually here we have MBAM (Microsoft BitLocker Administration & Monitoring) - part of MDOP. If MBAM is on picture, entire BitLocker related things managed by it. Recovery keys, GPO, TPM Passwords, reports and so on. If MBAM is integrated with SCCM, BitLocker Compliance Reporting part will be done by SCCM.
So as usual, as we all do, tried to find a guide on how to do this with MBAM and all. 😉I found several but almost all of them are outdated. With new MBAM 2.5 SP1, all you need is 2 additional steps in Task Sequence to enable BitLocker.

Please note that these are very basic task sequences just to give the core idea.

My environment:

1. System Center Configuration Manager (Current Branch) 1610
2. Microsoft Bitlocker Administration and Monitoring 2.5 SP1 with December 2016 package. (Integrated with SCCM)

Tested with:

1. Windows 10 version 1511
2. Windows 10 version 1607

Files needed: (Download links are at the end)

1. SaveWinPETpmOwnerAuth.wsf
2. Invoke-MbamClientDeployment.ps1

Type 1 - Pre-Provisioning BitLocker

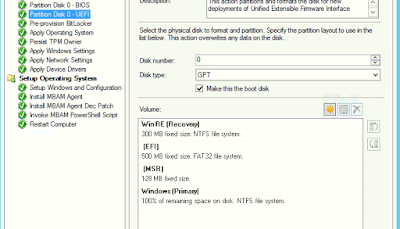

To do this remove every BitLocker related steps in task sequence except for "Pre-Provision BitLocker". Create an additional system partition for BitLocker at least 300MB of size to store boot files.

After applying the Operating System, run the "SaveWinPETpmOwnerAuth.wsf" to retain the TPM owner authorization value. This value will save in MBAM database and can use for manage TPM remotely. Make sure to insert above step before the installation reboots into newly applied OS. Otherwise the value will not be retained

Note: Starting from Windows 10 version 1607, TPM owner value will not be retained. So if you need to manage TPM, you need a physical presence (TPM Owner Password). Even though Microsoft not recommend, still it is able to retain TPM owner password with editing a registry value.

After installing the MBAM Agent and December update patch to the MBAM Agent, time to run the "Invoke-MbamClientDeployment.ps1" to configure and record the key information to MBAM database. This is the hard part. Several parameters needed to run this Powershell script. Mandatory parameter is "-RecoveryServiceEndpoint" pointing MBAM server. But in my case I had to use the "-EncryptionMethod" parameter even it's optional. Value I used was XTSAES128, default encryption method of Windows 10, even though pre-provisioning already set the method. If i didn't use a encryption method or changed to a different method, script failed.

Also make sure MBAM BitLocker Group Policies are not applied to the OU which used in "Apply Network Settings" task sequence step. Because PS script gives errors if the GPOs are there. Best way is to use a OU that doesn't apply any BitLocker policies in join to a domain step and move the computer to the appropriate OU once the task sequence is completed.

Full line:

-RecoveryServiceEndpoint "http://mbamserver.domain.com/MBAMRecoveryAndHardwareService/CoreService.svc" -EncryptionMethod XTSAES128 -EncryptAndEscrowDataVolume -IgnoreEscrowOwnerAuthFailure -IgnoreReportStatusFailure

Above steps worked for me.

Type 2 - Full Disk Encryption

In here, only step that needed is "Invoke-MBAMClientDeployment.ps1" script. Since Pre-provisioning is not used, it is possible to set the encryption method. I used XTSAES256 and the script ran without errors. I used a Dell Latitude E5520 laptop for testing and it took around 1-1.5 hours to encryption to complete on a 120GB SSD.

Links:

Microsoft BitLocker Administration and Monitoring - Client Deployment Scripts

Microsoft Desktop Optimization Pack Group Policy Administrative Templates
